B-22

FITNESS / VERTEX

THE RELENTLESS PURSUIT OF PERFECTION

The self-generating brake system offers low-to-high pedal resistance with minimal vibration throughout the training.

Specifications Related Product

Related Product

VERTEX

AR-23 DELUXE

AR-23 DELUXE

Welcome to see our introduction...

VERTEX

T-22 PRO

T-22 PRO

Welcome to see our introduction...

VERTEX

VE-22

VE-22

Welcome to see our introduction...

Specifications

B-22.1 B-22.2

CONSOLE

DISPLAY TYPE LED DOT-MATRIX

DATA READOUT

TIME ●
SPEED ●
RPM ●
STRIDES/MIN -
STRIDES -
DISTANCE / PULSE ●
CALORIES / WATT ●
METS -
BAI -
LAPS -
LEVEL (RESISTANCE) ●
VO2 -
HEART RATE ZONE -
PACE -

PROGRAMING

PRESET PROGRAM 6
HRC 6
TEST 2
MANUAL 1
USER -
GOAL 3
WATT 1
RPM -
INTERVAL -
RACE MODE -
RECOVERY -
MAP -
CUSTOM -
VIRTUAL ACTIVE -

PRODUCT FEATURE

DTV -
IPTV -
MULTIMEDIA -
SCREEN MIRRORING -
HDMI IN -
BTM (WAHOO) ○
NFC -
QR CODE -
USB CHARGING ●
UPDATE USB
FAN ●
BOTTLE HOLDER ●
ACCESSORY TRAY ●
ERGO SEAT ADJUSTMENT ●
PEDAL ADJUSTMENT ●
TRANSPORTATION WHEEL ●

SOUND OUTPUT

LINE OUT (3.5mm) -
COMPATIBLE BT HEADSET -
SPEAKER -

TECHNICAL SPECIFICATIONS

RESISTANCE SYSTEM GENERATOR
TRANSMISSIONS SYSTEM V-BELT
FLY WHEEL 242mm (14.5 kg)
TRANSMISSIONS RATIO 1:9.7
RESISTANCE LEVEL 40
POWER GENERATOR
ADAPTER ●
MAX. USER WEIGHT 180 kg (400lb)
MAX. WATT 400 WATT
STRIDE LENGTH -
HAND PULSE ●
HEART RATE RECEIVER ●5kHz

DIMENSION

ASSEMBLED LxWxH (mm) 1195 x 595x 1500 mm (47"x23.5"x 59")
N.W. ( kg) 66 kg (146 lb)
● Standard ○ Optional - Not Available

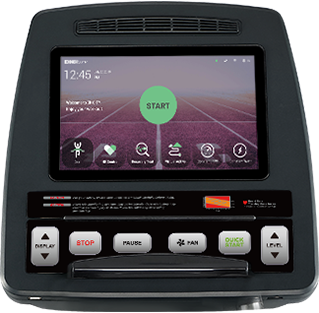

CONSOLE

DISPLAY TYPE TFT-LCD 10.1" CAPACITIVE TOUCH SCREEN

DATA READOUT

TIME ●
SPEED ●
RPM ●
STRIDES/MIN -
STRIDES -
DISTANCE / PULSE ●
CALORIES / WATT ●
METS -
BAI -
LAPS -
LEVEL (RESISTANCE) ●
VO2 ●
HEART RATE ZONE ●
PACE ●

PROGRAMING

PRESET PROGRAM -
HRC 5
TEST -
MANUAL -
USER -
GOAL 3
WATT 1
RPM 1
INTERVAL -
RACE MODE -
RECOVERY 1
MAP -
CUSTOM ●
VIRTUAL ACTIVE ●

PRODUCT FEATURE

DTV ●DVB-T,T2,C ○ATSC-8VSB,QAM
IPTV ● (SAP PROTOCOL)
MULTIMEDIA 18 (Netflix)
SCREEN MIRRORING ●
HDMI IN ●
BTM (WAHOO) ●
NFC ●EGYM COMMUNICATION PROTOCOL
QR CODE ●
USB CHARGING ●
UPDATE USB
FAN ●
BOTTLE HOLDER ●
ACCESSORY TRAY ●
ERGO SEAT ADJUSTMENT ●
PEDAL ADJUSTMENT ●
TRANSPORTATION WHEEL ●

SOUND OUTPUT

LINE OUT (3.5mm) ●
COMPATIBLE BT HEADSET ●
SPEAKER -

TECHNICAL SPECIFICATIONS

RESISTANCE SYSTEM GENERATOR
TRANSMISSIONS SYSTEM V-BELT
FLY WHEEL 242mm (14.5 kg)
TRANSMISSIONS RATIO 1:9.7
RESISTANCE LEVEL 40
POWER ADAPTER+GENERATOR
ADAPTER ●
MAX. USER WEIGHT 180 kg (400lb)
MAX. WATT 400 WATT
STRIDE LENGTH -
HAND PULSE ●
HEART RATE RECEIVER ● 5kHz ○ 3-IN-1(5kHz, 2.4GHz BLE, ANT+ )

DIMENSION

ASSEMBLED LxWxH (mm) 1195 x 595x 1500 mm (47"x23.5"x 59")
N.W. ( kg) 66 kg (146 lb)
● Standard ○ Optional - Not Available
